Pocket Size UTM Corner Ruler

Pocket Size UTM Corner Ruler

The Pocket Size UTM Corner Ruler is small, compact, and indispensable when plotting or measuring a GPS position or co-ordinate onto a topographic map, as a corner ruler will allow for very precise measurements to be made within the existing map grid square.
Map Tools Logo
5-Star Service
Trusted Equipment
Free Shipping
Free Shipping Over $50
5-Star Service
5-Star Service

This is a handy, compact, stow anywhere Pocket Size UTM Corner Ruler that includes 3 map scales: 1:24,000, 1:25,000, and 1:50,000.

Each corner ruler has a small hole to allow for placing a mark on the map, and grey-white ink around the corners to make the tool easier to read and help prevent losing it when placed and in use on a map. Printed on 30 mil plastic stock with a protective coating.

Size 7.6 cm x 7.6 cm | 3" x 3"

Made in the USA

Using a UTM Corner Ruler

A UTM Corner Ruler consists of two scales at right angles to each other. UTM Corner Rulers will typically provide an additional digit of precision beyond a UTM Grid Overlay. On a 1:24,000 scale map you will be able to determine a position to within a 10m square. The trade off is that the Corner Ruler is somewhat harder to use.

Start by placing the top right corner of the Corner Ruler on the SW corner of the UTM grid that contains the feature. The ruler edges should extend to the West and South. To find the UTM coordinates of a feature marked on your map slide the rulers North and East until the corner is on top of the feature to be measured. Read the UTM coordinate values from the starting grid lines. To locate a UTM coordinate on the map slide the ruler North and East until the desired distances are indicated at the grid lines.

If the grid square you are using is on the edge of your map, you may need to start from a corner other than the southwestern one. You can still use the corner ruler, remember that UTM coordinate values increase from West to East and from South to North.

Corner Ruler Usage

If you are using an odd scaled map or if you left your UTM tools behind, you can quickly make a simple corner ruler using the scale bars on the map.

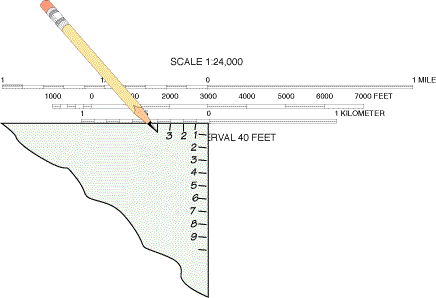

Start with the corner of a scrap of paper. Mark off a one kilometer distance and the 100m subdivisions using the metric scale bar. Repeat this process along the other edge. Number both rules starting from the corner which would be zero.
